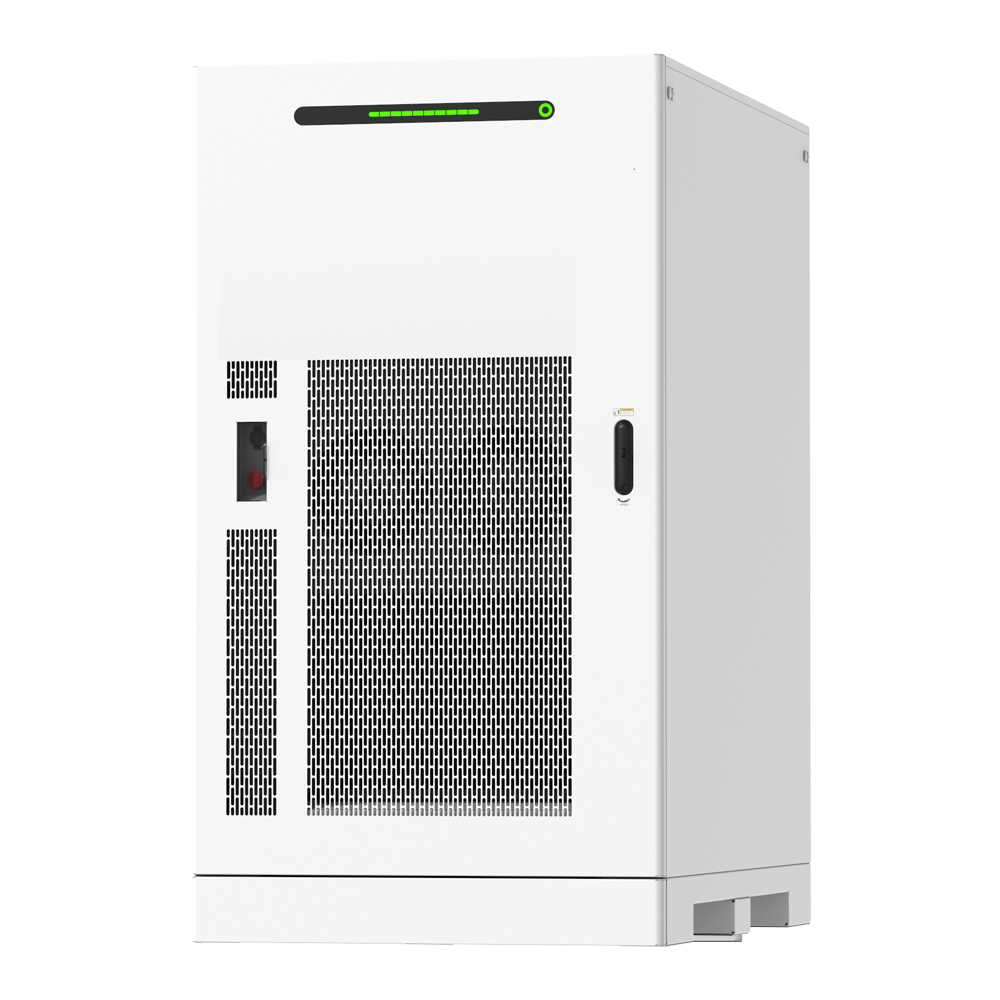

LUNA2000-241 Series Specs | HUAWEI Smart PV Global

Cancel

Search History

delete delete done

Recommendations

FusionSolar Global / English

Asia Pacific

Latin America

Middle East & Africa

Energy Storage System Parameters

Rated capacity

241.0 kWh

Maximum cycle efficiency

91.3%

Depth of charge and discharge

0 ~ 100%

Dimensions (W x D x H)

1150 mm × 1800 mm × 2100 mm

Weight

＜2.8 T

Operating temperature range

-30 °C ~ 55 °C ( ＞ 50 °C Derating)

Storage temperature range

-35 °C ~ 60 °C

Operating humidity range

0 ~ 100%RH (non-condensing)

Maximum operating altitude

4000 m

System temperature control mode

Hybrid cooling

Balance mode

Active balance

SOC calibration mode

Automatic

Fire suppression mode

Pack-level oxygen barrier, Directional gas exhaust, Top explosion vent, Aerosol

Auxiliary power supply

176 ~ 300 Vac，single phase，≤5 kW

Power consumption standby

≤150 W

Communication port

Ethernet / Optical fiber

Communication protocol

Modbus TCP

Protection degree

IP55

EMC protection rating

Class B

Noise (rated operating condition)

≤65 dB(A)

Lightning protection

Type II (AC port)

Protection mode

Anti-islanding protection, residual current detection, insulation resistance detection, AC overcurrent protection, and AC cable connection protection

Environment

RoHS6

Certification standards

UL9540A; UN38.3; IEC 62477-1; IEC 62040-1; IEC 61000-6-1/2/3/4; IEC 62619; IEC 60529; VDE-AR-E 2510-2/50; IEC 62933-5-1/2; IEC 61727; EN 50549; GB/T 34120

Battery Parameters (DC)

Cell material

LFP

Rated battery capacity

314 Ah

System battery configuration

240S1P

Number of battery packs

Operating voltage range

648 ~ 852 V

Rated DC current

140 A

PCS Parameters (AC)

PCS model type

PCS2000-108K-MB1

Rated output power

108 kW

Rated AC current

155.9 A

AC voltage & frequency

380 / 400 / 415 V (3P4W)，50 / 60 Hz

Adjustable power factor range

-1 ... +1

AC current harmonics THDi (rated output power @on-grid)

≤1.5 %

AC Voltage harmonics THDu (linear load @off-grid)

≤2.0 %
