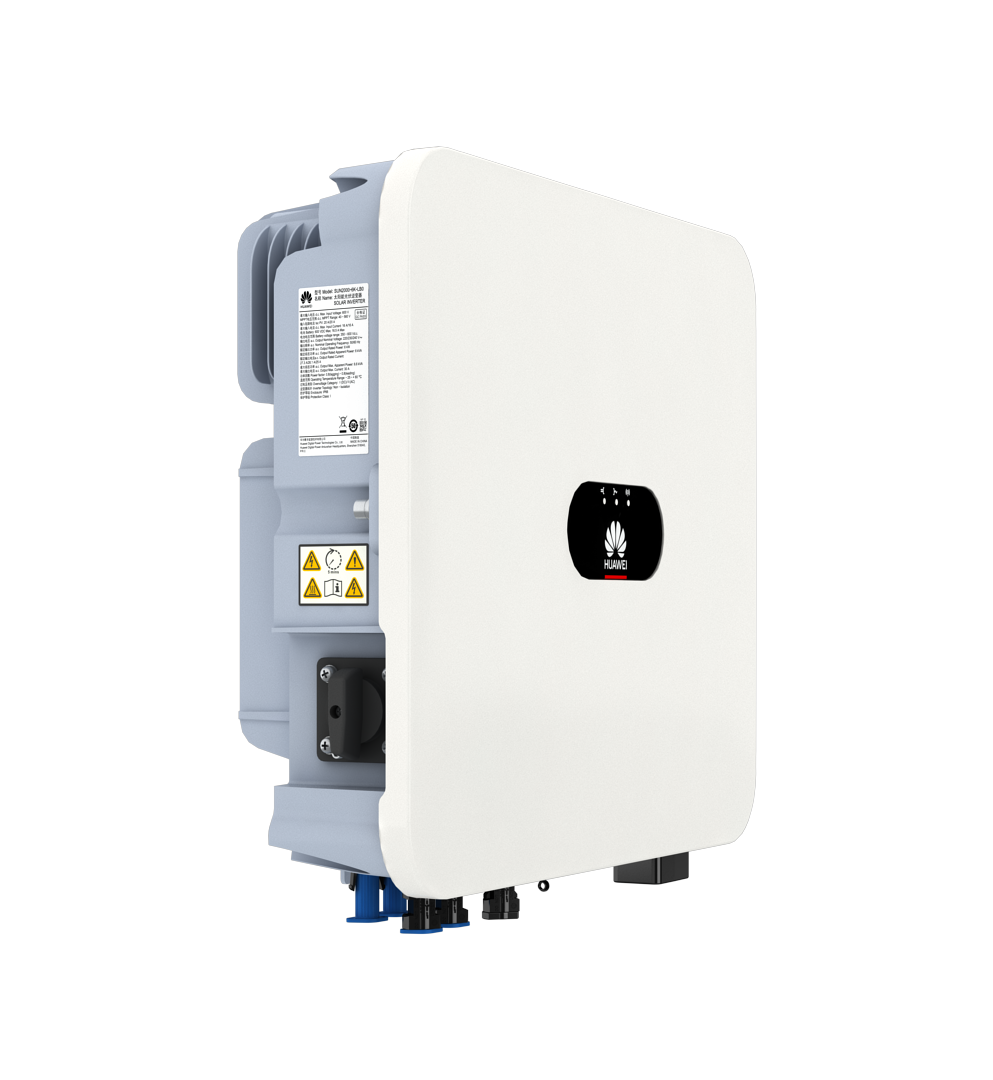

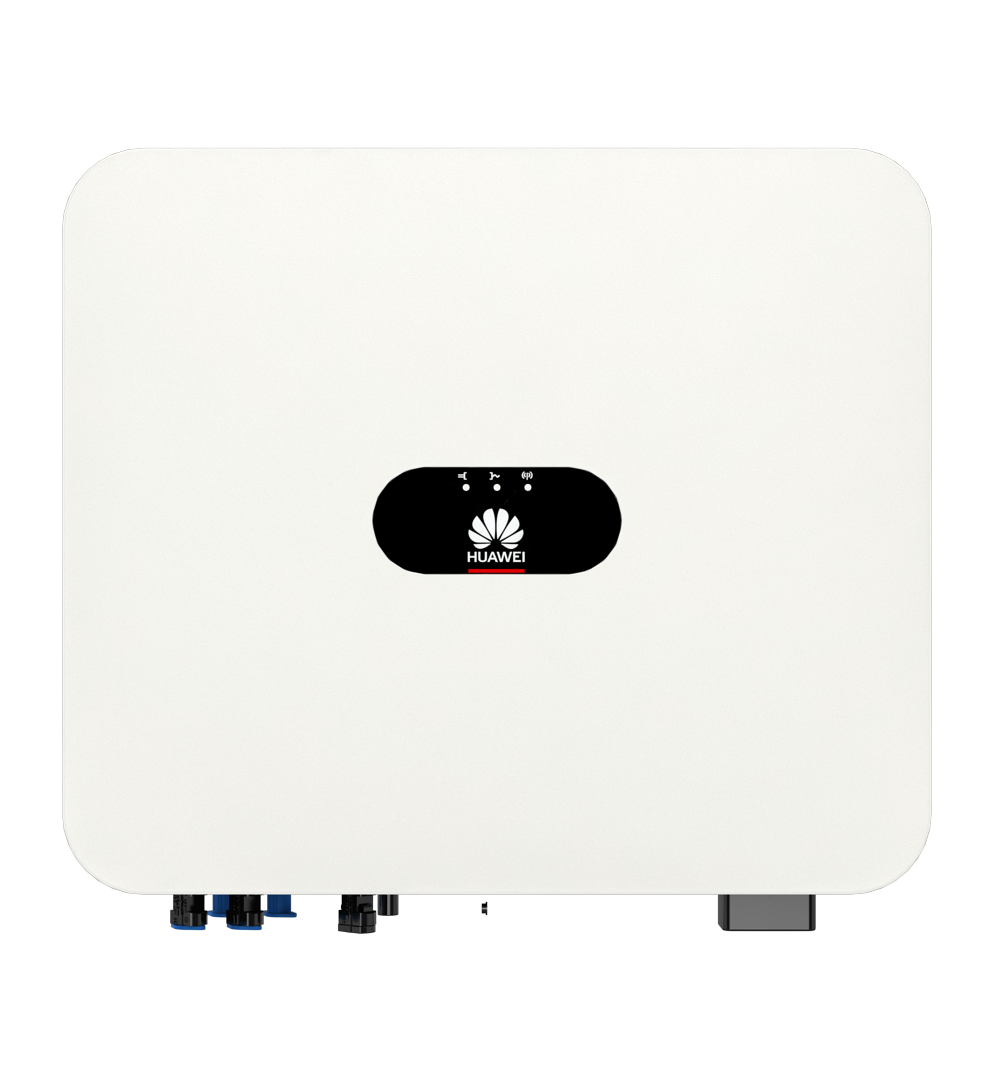

SUN2000-3/3.68/4/4.6/5/6K-LB0 Specs

Efficiency

Max. efficiency

97.8%

European weighted efficiency

96.6%

96.8%

97.0%

97.1%

97.2%

Input (PV)

Recommended max. PV power

4500 Wp

5520 Wp

6000 Wp

6900 Wp

7500 Wp

9000 Wp

Max. input voltage¹

600 V

Start-up voltage

50 V

MPPT operating voltage range

40 - 560 V

Rated input voltage

360 V

Max. input current per MPPT

16 A

Max. short-circuit current

20 A

Number of MPP trackers

2

Max. inputs per MPP tracker

1

Input (DC Battery)

Compatible battery

LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1

Operating voltage range

350–560 Vdc

Max. operating current

16.5 A

Max. charge power

6000 W

Max. discharge power

3300 W

3680 W

4400 W

4600 W

5500 W

6600 W

Output (On Grid)

Grid connection

Single-phase

Rated output power

3000 W

3680 W

4000 W

4600 W

5000 W

6000 W

Max. apparent power

3300 VA

3680 VA

4400 VA

5000 VA

5500 VA

6600 VA

Rated output voltage

220 V AC/230 V AC/240 V AC

Rated AC grid frequency

50 Hz / 60 Hz

Max. output current

15 A

16 A

20 A

23 A

25 A

30 A

Adjustable power factor

0.8 leading ... 0.8 lagging

Max. total harmonic distortion

≤ 3%

Backup power output

Yes (via SmartGuard-63A-S0)

Protection Feature

Anti-islanding protection

Yes

DC reverse polarity protection

Yes

Insulation monitoring

Yes

DC surge protection

Yes, compatible with TYPE II protection class according to EN/IEC 61643-11

AC surge protection

Yes, compatible with TYPE II protection class according to EN/IEC 61643-11

Residual current monitoring

Yes

AC overcurrent protection

Yes

AC short-circuit protection

Yes

AC overvoltage protection

Yes

Arc fault protection

Yes

Battery charging from grid

Yes

General Specification

Operating temperature range

–25 °C to +60 °C (–13 °F to +140 °F)

Relative operating humidity

0% - 100% RH

Operating altitude

0 - 4000 m (Derated above 2000 m)

Cooling

Natural convection

Display

LED indicators; integrated WLAN + FusionSolar app

Communication

RS485, WLAN via inverter built in WLAN module
Ethernet via Smart Dongle-WLAN FE (Optional);
4G / 3G / 2G via Smart Dongle-4G (Optional); EMMA

Weight (incl. mounting brackets)

< 15 kg

Dimensions (incl. mounting plate)

425 mm x 376.5 mm x 150 mm

IP rating

IP66

Nighttime power

< 3 W

Optimizer Compatibility

DC MBUS compatible optimizer

SUN2000-450W-P2, SUN2000-600W-P

Standards Compliance (More Available Upon Request)

Safety

EN/IEC 62109-1, EN/IEC 62109-2

Grid connection standards

G98, G99, G100, EN 50549-1, CEI 0-21, VDE-AR-N-4105, C10/11, P140,
UTE C15-712, TOR Erzeuger, IEC61727, IEC62116
